Vision-guided robotic case packing

One flexible platform.
Configured for your product.

The Osprey is JLS's vision-guided robotic case packing line — machine vision and custom end-of-arm tooling that load trays, chubs, bags, and pouches into cases at end of line. Each variant is configured for your product and case format.
Talk to an Automation Expert Schedule a Facility Tour
One platform
Application-engineered configurations
2D/3D Vision
Application-matched, when needed
VOB 2.0
Vacuum-on-Board tooling
IP69K-Capable
Hygienic washdown rated
The Osprey case packing line

One robotic case packer
for every primary pack.

The Osprey is JLS Automation’s family of robotic case packers for food manufacturers — handling tray loading, chub loading, and bag or pouch packing with vision-guided delta robots, VOB 2.0 vacuum tooling, and cleanable construction. Every Osprey is engineered, programmed, and supported entirely in-house. Choose the variant for your package format below.

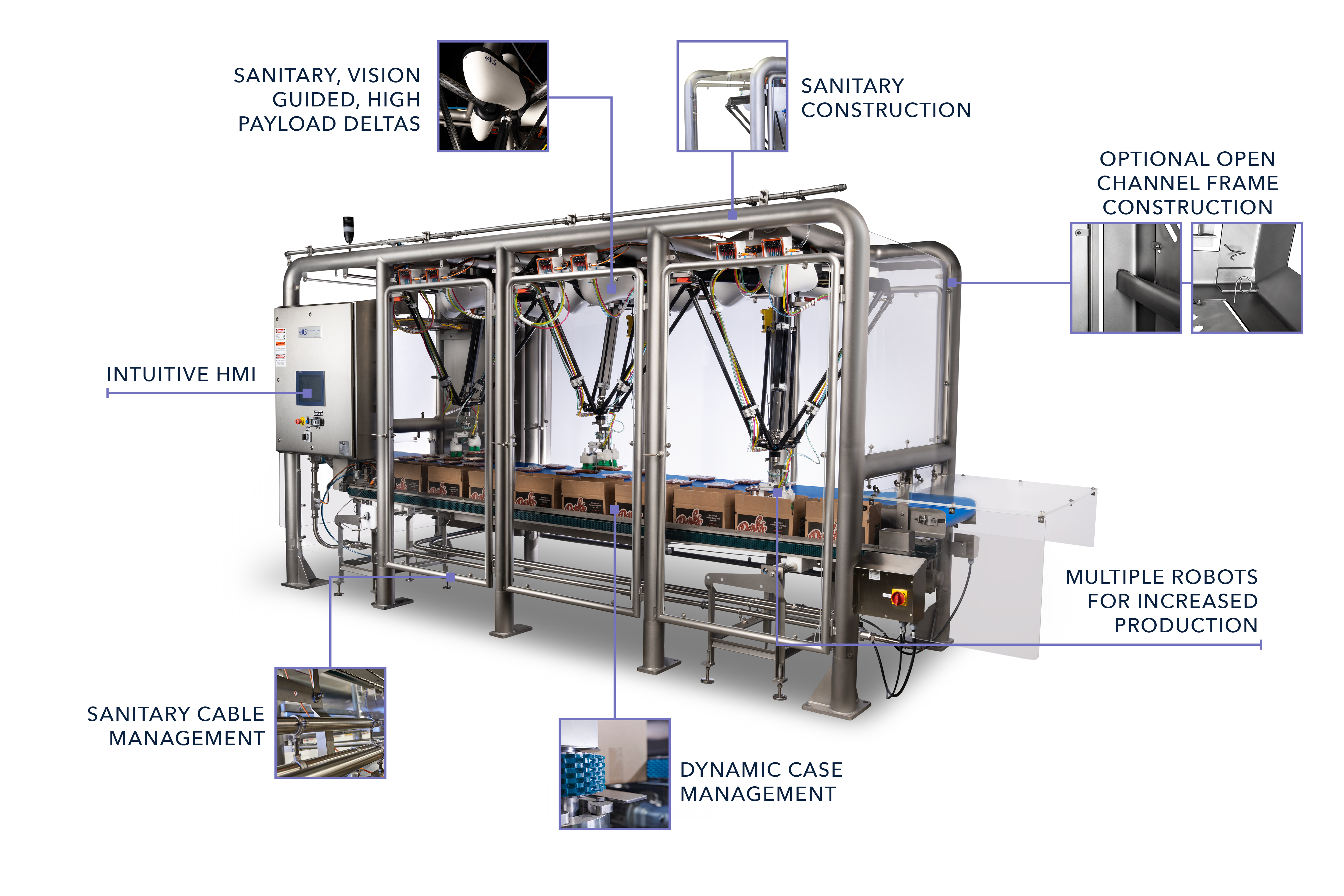

JLS Osprey vision-guided robotic case packer loading finished food trays into a shipping case with an open-frame, cleanable-construction delta robot
Applications

Built for the full range of food formats.

The Osprey case packs protein, bakery, dairy, frozen, and confectionery — with tooling configured for your exact package, weight, and line speed.

Fresh & Frozen Meats

Sliced meats · Whole muscle · Formed patties · Bacon drafts · Sausage links · Portion-controlled proteins

Bakery & Raw Dough

Tortillas · Flatbreads · Muffins · Baguettes · Dough balls · Biscuits · Snack cakes · Enrobed bars

Cheese & Dairy

Blocks · Slices · Sticks · Shreds · Portion cups · Specialty formats

Sandwiches & Snack Packs

Breakfast sandwiches · Deli sandwiches · Wraps · Cracker snack packs · Lunch kits · Portion trays

Frozen & Prepared Foods

Burritos · Egg rolls · Corn dogs · Pocket sandwiches · Frozen entrees · Ready meals

Confectionery

Marshmallow treats · Candy · Chocolates · Caramels · Novelty shapes · Enrobed bars
Don't see your product? Talk to an engineer

Choose your Osprey

Multiple case-packing configurations on one proven platform. Pick the variant configured for your package format and have the tooling customized for your exact product and line speed.
Osprey TL robotic tray loader packing meat trays into cases

Osprey TL

Tray & rigid-container loading

Trays, thermoformed packs, and rigid containers loaded at up to 180/min (three-head) with vision-guided placement and 5–10 minute changeovers.

Best for: Meat trays, poultry trays, dairy containers, thermoformed MAP packs, and retail-ready tray formats.

Key advantage: Custom VOB 2.0 tooling configured for your exact tray geometry. Small footprint fits tight plant layouts. IP69K-capable construction designed for daily sanitation cycles.

Up to 180 trays/minIP69K-Capable5–10 min ChangeoverVOB 2.0 Tooling
Explore Osprey TL

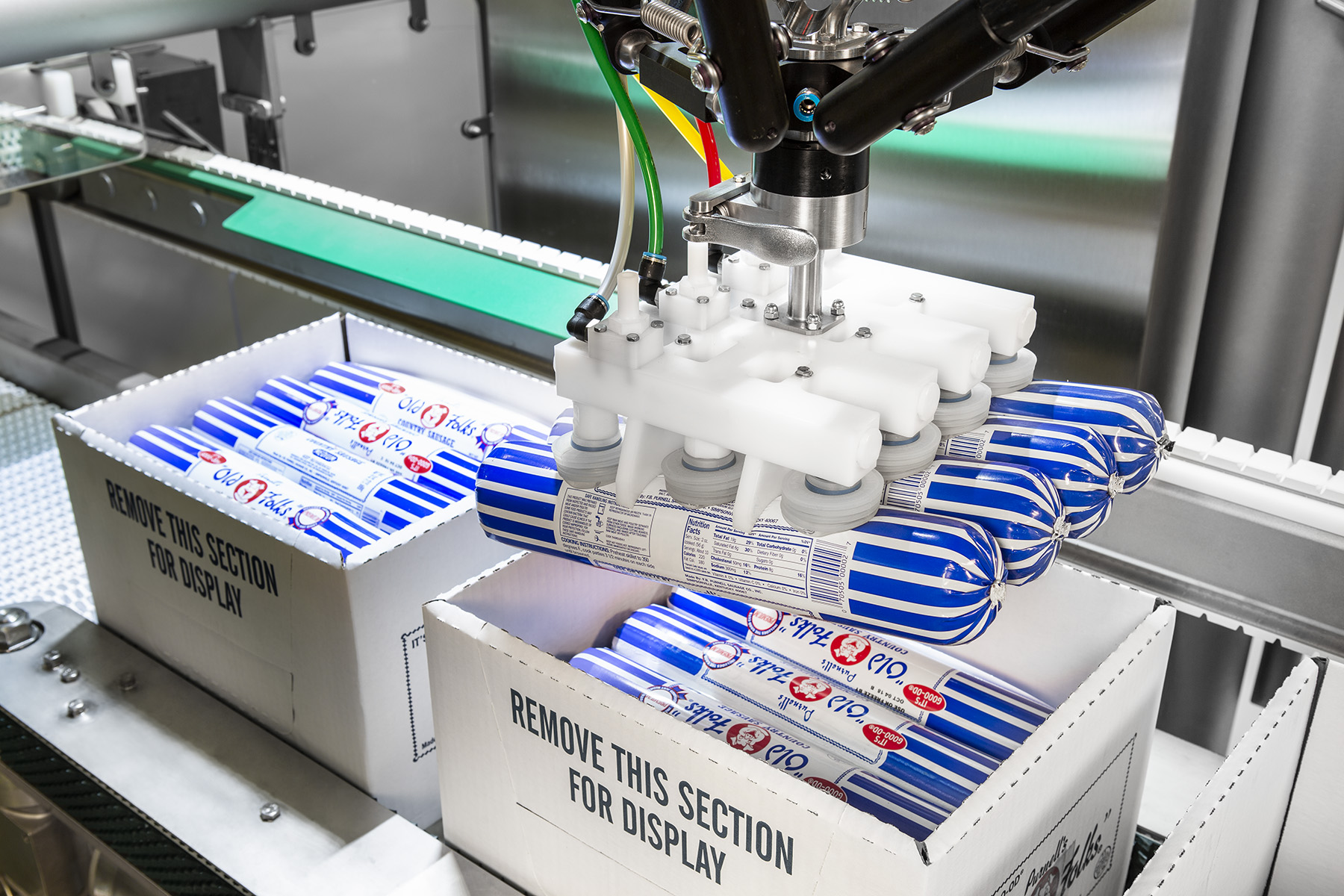

Osprey CL robotic chub loader using V-TRACK conveyor to load sausage chubs into a case

Osprey CL

Chub & cylindrical product loading

Chubs, sausage logs, and cylindrical products loaded at up to 240/min (triple head)*. The proprietary V-TRACK pick conveyor eliminates rolling.

Best for: Ground meat chubs, sausage logs, pet food chubs, and cylindrical products from 8 oz to 10 lbs.

Key advantage: Proprietary V-TRACK conveyor cradles each chub — solving the rolling problem that keeps chub packing manual. VOB vacuum tooling acquires chubs regardless of diameter or weight.

Up to 240 chubs/min*NEMA 4XV-TRACK ConveyorRecipe Changeover
Explore Osprey CL

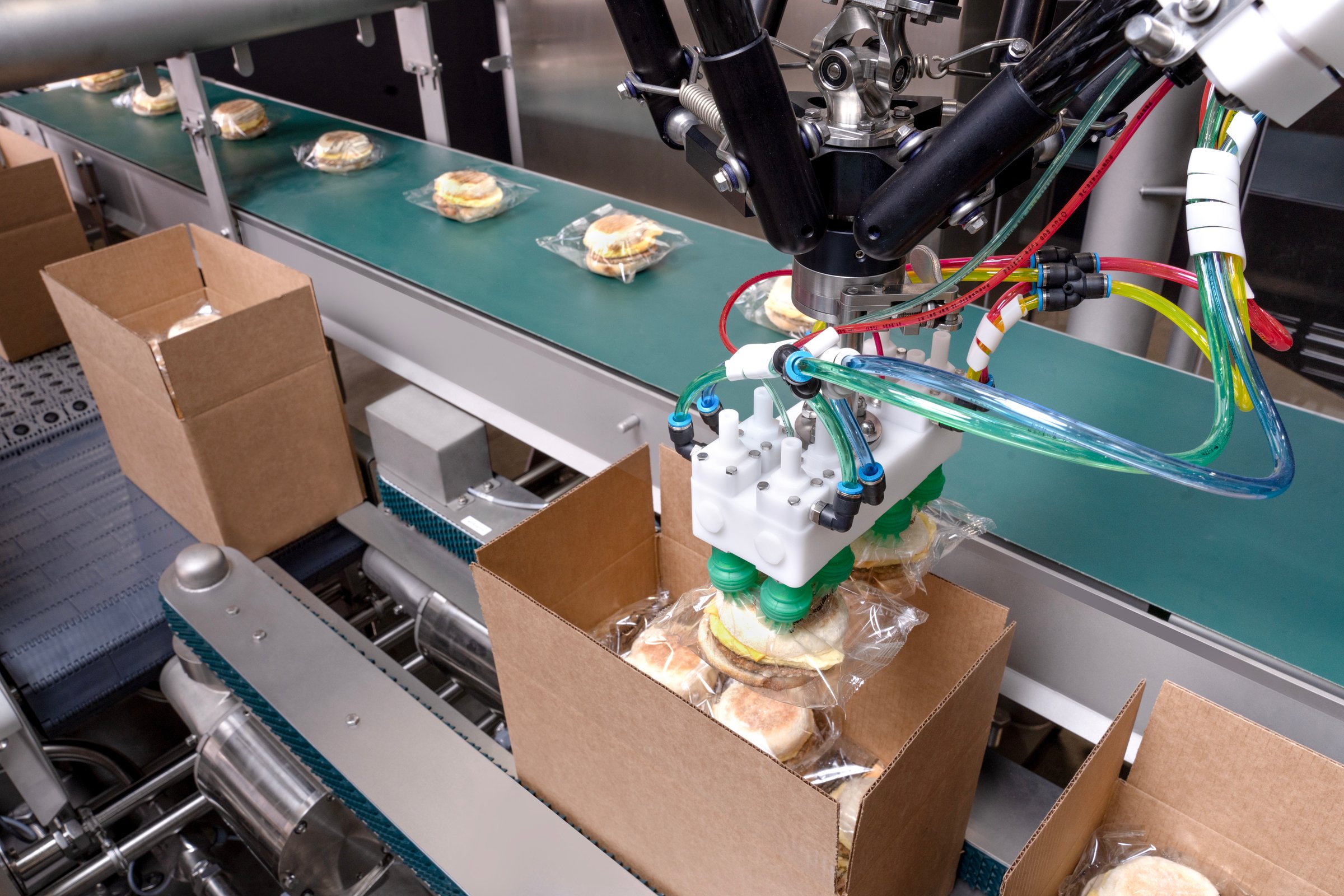

Osprey BP robot loading flexible pouches into a shipping case

Osprey BP

Bag, pouch & thermoformed-pack loading

Flexible packs — pouches, bags, vacuum packs, thermoformed packs — loaded gently and precisely with custom VOB 2.0 tooling. recipe-based changeovers.

Best for: Pillow bags, stand-up pouches, vacuum packs, thermoformed flexible packs, and flow-wrapped products.

Key advantage: 2D + 3D vision-guided placement handles the variability of flexible packaging. Recipe-based changeovers — select a product, swap the tooling, press run.

IP65/IP69K-Capable2D + 3D Vision
Explore Osprey BP
Unique case-packing application? Talk to an automation expert

More JLS solutions for case packing

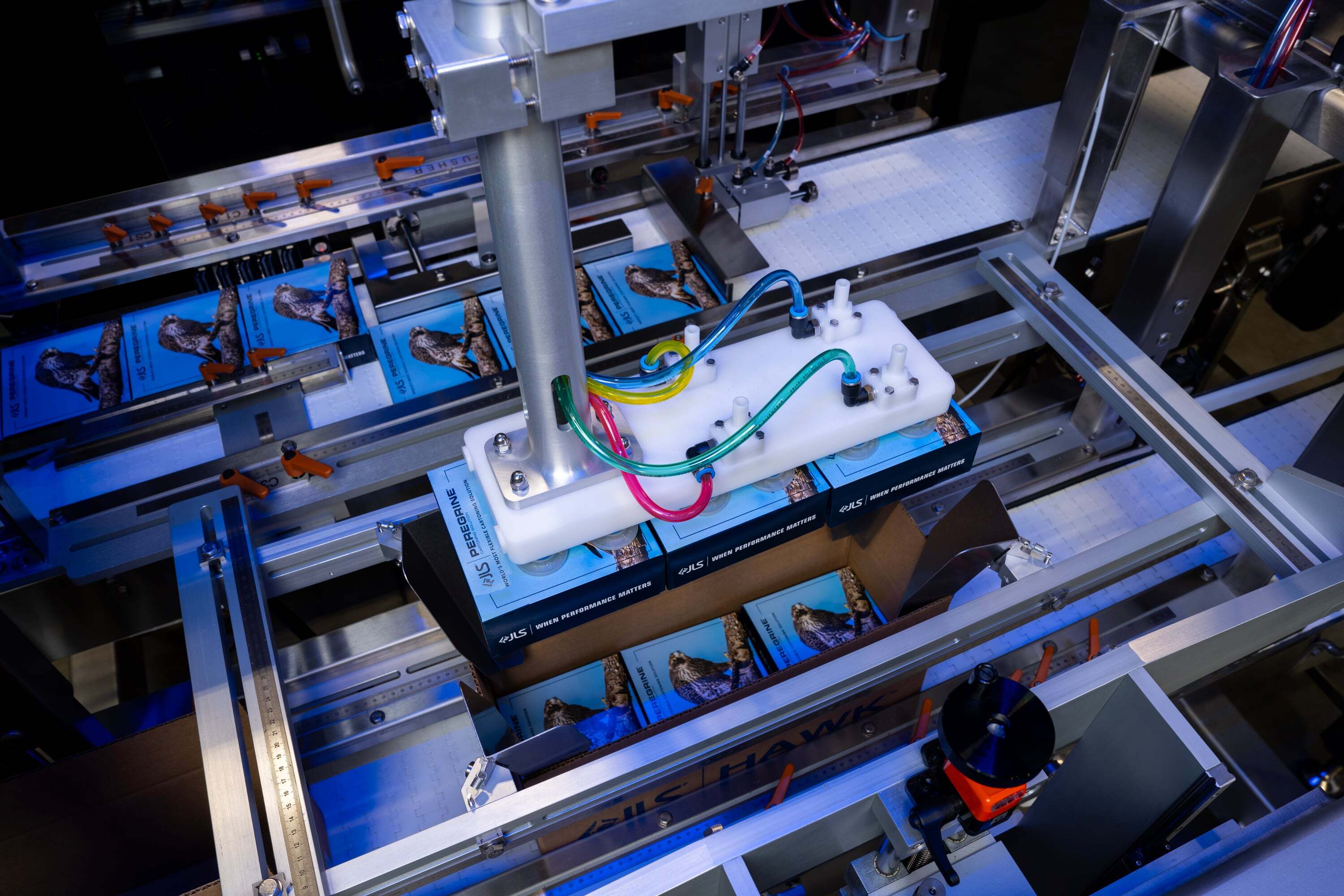

Hawk 2-axis robotic case loader packing products into cartons

Hawk

Small-footprint case & tray loading

Compact 2-axis robotic case loader for cartons, clamshells, rigid containers, and trays. Small footprint, fast changeover, food-safe construction.

NEMA 4XSmall FootprintFood-Safe
Explore the Hawk

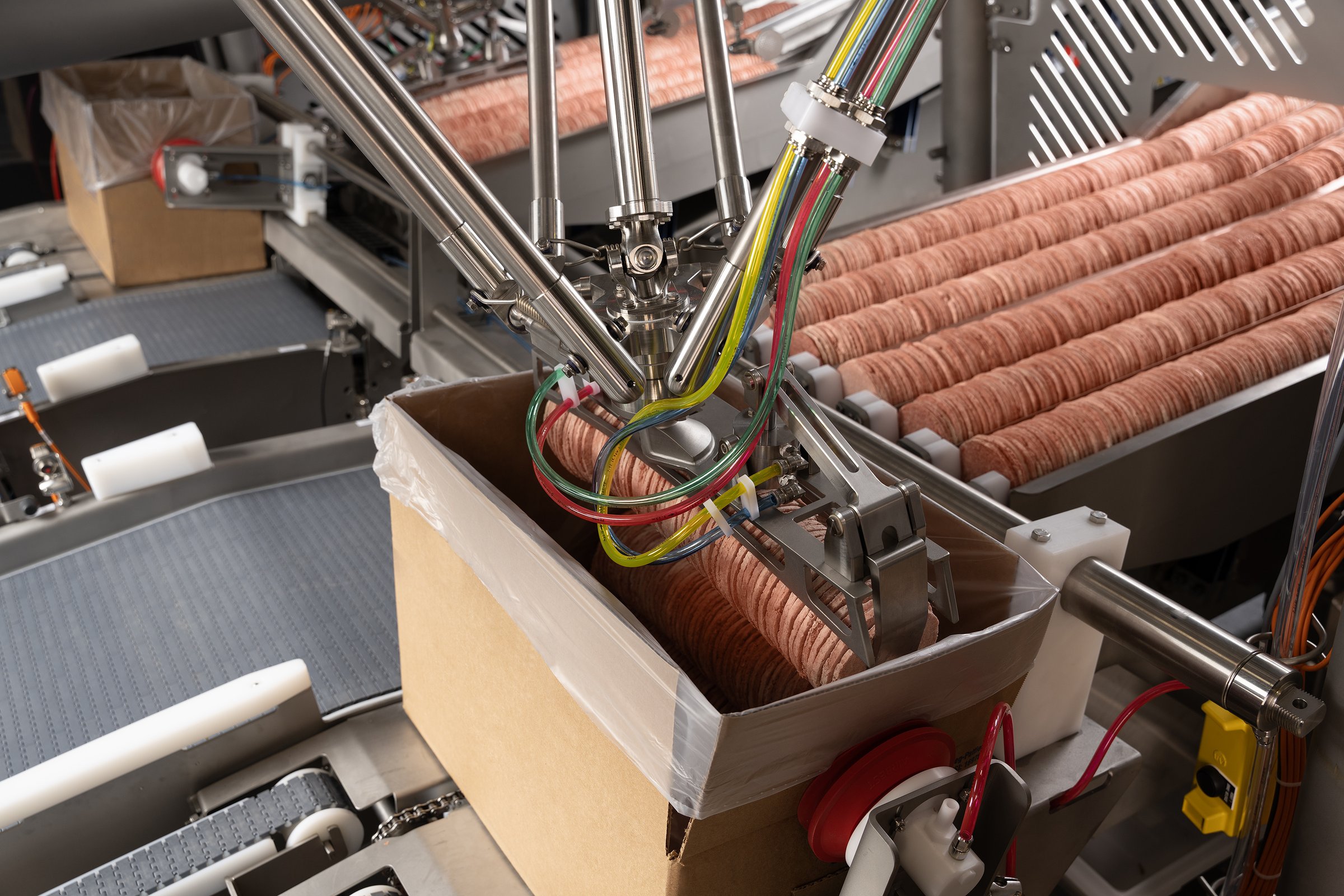

Patty Hawk robot stacking frozen patties into a case

Patty Hawk

Frozen patty stack & pack

Purpose-built robotic stacking and case packing for frozen patty formats — hamburger, chicken, sausage, and egg patties. IP69K washdown-ready.

IP69KWashdown-ReadyProtein-Optimized
Explore Patty Hawk
Have a unique application? Contact us
Platform Engineering

Case packing automation designed for food.
Not adapted to it.

Most pick-and-place robots start life in automotive or electronics — then get modified for food. The Osprey was engineered from the ground up for high-speed case packing and daily washdown from day one.
Vision system

Integrated vision — standard, not an add-on

Every Osprey ships with a fully integrated vision system. The camera locates each package on the belt, reads orientation, and feeds that data to the robot in real time. Random infeed is handled automatically — your upstream process doesn't need to change.

Why it matters: Many competing systems charge separately for vision or offer it as a paid upgrade. JLS includes it because food production is never perfectly consistent.
JLS-engineered tooling

VOB 2.0 — vacuum-on-board

JLS's Vacuum-on-Board tooling moves the vacuum generator directly onto the robot arm — eliminating long vacuum lines and cutting air consumption by 50% or more versus conventional vacuum systems. Tooling is custom-configured for your exact package: size, weight, texture, and format.

Operating cost impact: Less air consumption = lower utility costs, every shift. Shorter vacuum lines also mean faster response and more consistent picks at high speed.
Cleanable design

Cleanable construction — built to get wet

Stainless steel open-frame construction, continuous welds, sloped surfaces, and no horizontal pooling points. Built for high-pressure, high-temperature washdown — the same sanitation regimen your team already runs. IP69K-capable construction is available where the application requires it.

Built for USDA/FSIS-inspected plants: The Osprey isn't a general-purpose robot with food-grade modifications. It was built for this environment from the first weld.
In-house software

JLS-owned motion control

JLS writes and owns its control software — the intelligence behind every Osprey. Recipe-based changeovers let floor operators select a product and press run. No robotics expertise needed. Updates and changes come direct from JLS — remotely or on-site from York, PA.

In-house programming: JLS wrote the code. JLS supports the code. When something needs to change, you call one company — not three.

Which Osprey is right for you?

Quick side-by-side. Click any column heading to see the full product page.

Osprey TL Osprey CL Osprey BP
Best For MAP, foam & thermoformed traysChubs & cylindrical productsBags, pouches & thermoformed packs
Speed 80–180 trays/min by head countUp to 240 chubs/min (triple head)Varies by product
Changeover 5–10 min, recipe-basedRecipe-basedRecipe-based
Sanitation IP69K-CapableNEMA 4XIP65 / IP69K-Capable

The Talon is the most versatile pick & place robot we build — and we configure it for your exact product.

Contact us about your automation needs

See it run

Watch the Osprey in action

Osprey — cleanable-construction robotic case packing JLS Osprey

Osprey — cleanable-construction robotic case packing

A look at JLS robotic packaging across a range of food formats.

Test before you commit

Prove your case-packing application
before you commit to the line.

Bring us your actual product. We’ll set up a live robotic test in our Flight Lab — so you can see exactly how the Osprey handles your package format before any commitment. What we prove in the Flight Lab hands directly to the systems engineering team that designs and commissions your line — same building, no restart.

Live
Robotic test with real product
U.S. Built
U.S. built automation
No
Commitment required
Schedule a Flight Lab Test
JLS robotics replaced manual loading on a high-throughput cheese line without bruising the product or breaking sanitation.
Barron County Cheese Talon thermoformer loading — Wisconsin
FAQ

Common questions about the Osprey platform

From format fit to washdown ratings to ROI timelines — answered by JLS application engineers.

The Osprey is JLS Automation’s family of robotic case packers for food manufacturers. It picks finished packages — trays, chubs, brick packs, bags, and pouches — and loads them into shipping cases or master bags at line speed with consistent placement. Three configurations (TL, CL, BP) cover the full range of food packaging formats, from rigid trays to flexible pouches to cylindrical chubs.

The Osprey TL is a robotic tray loader for foam, MAP, and thermoformed trays. The Osprey CL is a chub loader for ground meat and sausage chubs, with the proprietary V-TRACK™ pick conveyor that prevents rolling. The Osprey BP loads flat pouches, bags, and flexible packs using 2D + 3D vision-guided placement. JLS configures the right variant for your package format and line speed.

It depends on what you run: trays and rigid containers point to the Osprey TL, chubs and brick packs to the Osprey CL, and bags or pouches to the Osprey BP. JLS reviews your product, pack format, and line speed to recommend the right configuration. If you’re unsure, bring your actual product to our Flight Lab and we’ll test it before any commitment.

Yes. Osprey systems are built to cleanable construction — open-frame sloped stainless steel, NEMA 4X controls, continuous welds, and sanitary cable management designed for food plant environments and regular washdown. IP69K-capable construction is available where the application requires it.1

Throughput depends on product and format. The Osprey CL case packs ground meat and sausage chubs at up to 240/min in a triple-head configuration. The Osprey TL handles trays at up to 180/min in a three-head configuration. Rates for the Osprey BP are sized to your line and SKU mix. All throughput figures are application-dependent — JLS sizes the system to your specific line speed.

It depends on line speed and shift schedule, but an Osprey case packer typically replaces multiple repetitive manual case-packing positions and runs them consistently across every shift, while improving case quality, ergonomics, and throughput. Labor savings scale with line speed, shift schedule, and labor model — JLS quantifies the specific savings for your application during a line assessment.

Yes. JLS integrates the Osprey with tray sealers, thermoformers, conveyors, checkweighers, metal detectors, and your existing upstream and downstream equipment into one coordinated line. JLS handles the integration engineering — you provide the line layout and equipment specs.

Yes. Before any capital commitment, JLS runs your actual product in our Flight Lab with tooling configured for it and validates the case-packing application out on your real product before final design. What we prove in the Flight Lab hands directly to the systems engineering team that designs and commissions your line — same building, no restart.

Often, yes. The final design depends on available floor space, line speed, product presentation, controls, sanitation access, and your existing equipment. JLS reviews the full line layout so the Osprey integrates the way the plant already runs.

Most JLS Osprey projects evaluate payback in the 24–36 month range, depending on labor cost, shift schedule, line speed, uptime improvement, and the specific application. Labor savings scale with the platform, line speed, and labor model, with added value from improved throughput and more consistent case packing.

Designed, built, programmed, and tested at JLS Automation in York, Pennsylvania, with support from JLS's in-house team, working directly with the engineers who built your system — remote diagnostics, on-site service, training, parts, and preventive maintenance. In-house programming means JLS can push updates and troubleshoot without third-party contractors or overseas lag.

What do you want to know?

Ask us anything — an automation expert will follow up.

What can we help with? Optional — select any that apply.

By submitting, you agree that JLS Automation and Robert Reiser & Co. may contact you about your inquiry.

1 IP69K is a capability JLS can build to on the Osprey platform — it is not a universal specification across all configurations. Confirm IP69K requirement with your JLS application engineer. JLS cleanable construction: open-frame design, sloped surfaces, continuous welds, NEMA 4X controls, and sanitary cable management.

Over 1,000 custom installs. Predictable performance. Premier, dedicated service.

  • Factory-tested reliability
  • In-house programming — York, PA
  • Same in-house team, day one to decades later
  • Fast dispatch from York, PA — within a day's drive of most East Coast and Midwest plants
  • Remote diagnostics + on-site support

Not sure which Osprey fits your line?

Our engineers will assess your product, your package format, and your line speed — then recommend the right configuration.

Talk to an Automation Expert Schedule a Facility Tour
Already running a JLS line?
Connect with the service experts who keep your automation performing.
Spare parts, preventive maintenance, retooling, training, and on-site support — from JLS's in-house support team, backed by the engineers who built your machine.
Services & Support Order Parts
